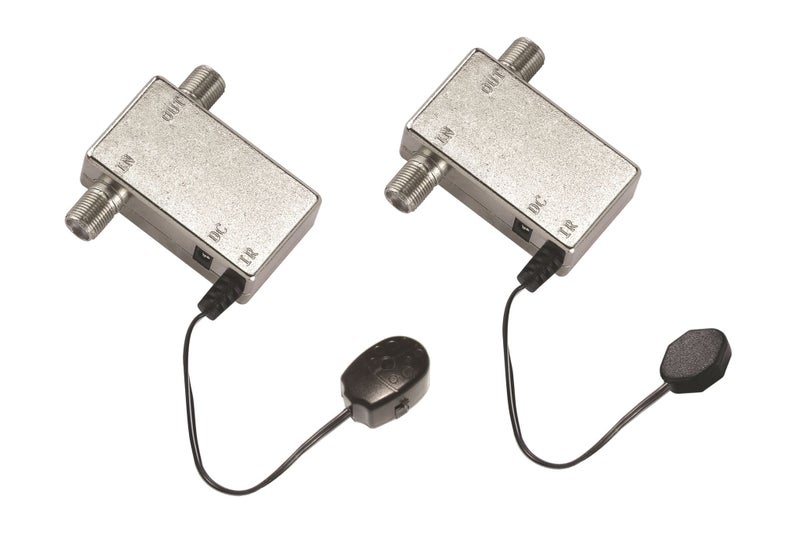

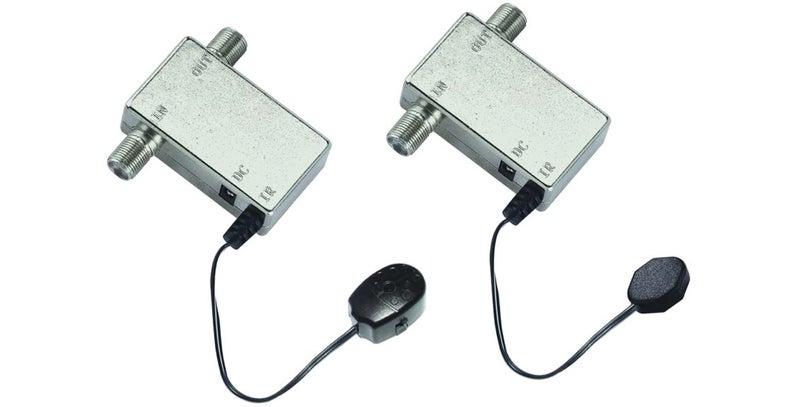

FEATURES:

EXTENDING IR SIGNAL THROUGH RG6--COAXIAL CABLE.

SUCH AS DVD PLAYER, WIRELESS KEYBOARD AND MOUSE, SATELLTIE RECEIVER OR OTHER IR SIGNAL DEVICES (IT DOES NOT COMPETIABLE WITH MY SKY HD)

1. APPLICABLE TO HOME CABLE TV NETWORK. SIGNAL CAN PASS THROUGH SEVERAL SPLITTERS OR COUPLERS FSK MODULATION/DEMODULATION.
2. SUITABLE FOR RF TRANSMISSION

SPECIFICATIONS :

GENERAL:

1. FREQUENCY: 27.045MHZ/27.145MHZ
2. CARRIER FREQUENCY: 38KHZ
3. OPERATING TEMPERATURE: 0 ~ +50
4. TYPICAL CENTER FREQUENCY: 455KHZ

IR EXTENDER RECEIVER:

1. INSERTION: LOSS: 1.5DB 860MHZ / 3DB 2.3GHZ
2. IR EMITTING RANGE: 5M TYPICAL
3. CURRENT CONSUMPTION: 10MA
4. SENSITIVITY: <-90DBM
5. IF FREQUENCY: 455KHZ

IR EXTENDER TRANSMITTER:

1. L.O. LEAKAGE TO TV PORT: <80DBM
2. OUTPUT POWER: -15 DBM TYPICAL
3. INSERTION LOSS: <3DB 860MHZ
4. CURRENT CONSUMPTION: 10MA TYPICAL
